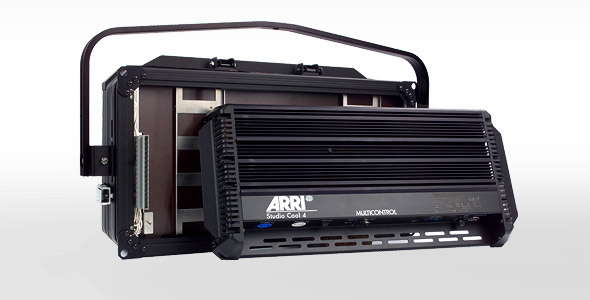

Constructed with rigid aluminium extrusion profiles, all three models are available with three control module options. The Multi Control version gives full DMX and 0-10 V analog control features, as well as a built-in manual dimmer on the back of the fixture. The Phase Control version allows conventional dimming via optional phase load adapters. The basic version is equipped with a 2-position switch, for single On/Off control of one or two tubes. The series covers a performance spectrum of 110 - 220 Watt.
| Lamphead Type: |
Flood, 250 W |
| Reflector Type: |
High purity aluminum |
| Lamp Type: |
TC-L 55 W |
| Power Consumption: |
4 x 55 W |
| Voltage Range: |
230 V / 120 V |
| Lamp Base: |
2G11 |
| Dimmability: |
Yes, 1% - 100% @230 V; 3% - 100% @120 V |
| Cable Options: |
Schuko |
| Correlated Color Temperature: |
3200 K / 5600 K |
| Beam Angle: |
90° / 120° |
| Product Weight: |
7,8 kg / 17.2 lbs. |
| Shipping Weight: |
10,4 kg / 22.9 lbs. |
| Product Size (HxWxL): |
435 x 733 x 176 mm / 17.1" x 28.9" x 6.9" |
| Shipping Size (HxWxL): |
600 x 765 x 285 mm / 23.66" x 24.09" |
| Lens Diameter: |
- |
| Accessory Diameter: |
599 x 312 mm / 23.58" x 12.28" |
| Barndoor Size: |
601 x 312 mm / 23.66" x 24.09" |
| Mounting: |
Spigot 28 mm / 1 1/8" (1.1") |
| Protection Class: |
I/IP 20 |
| Certifications: |
CE, CB, GS, cNRTLus |
