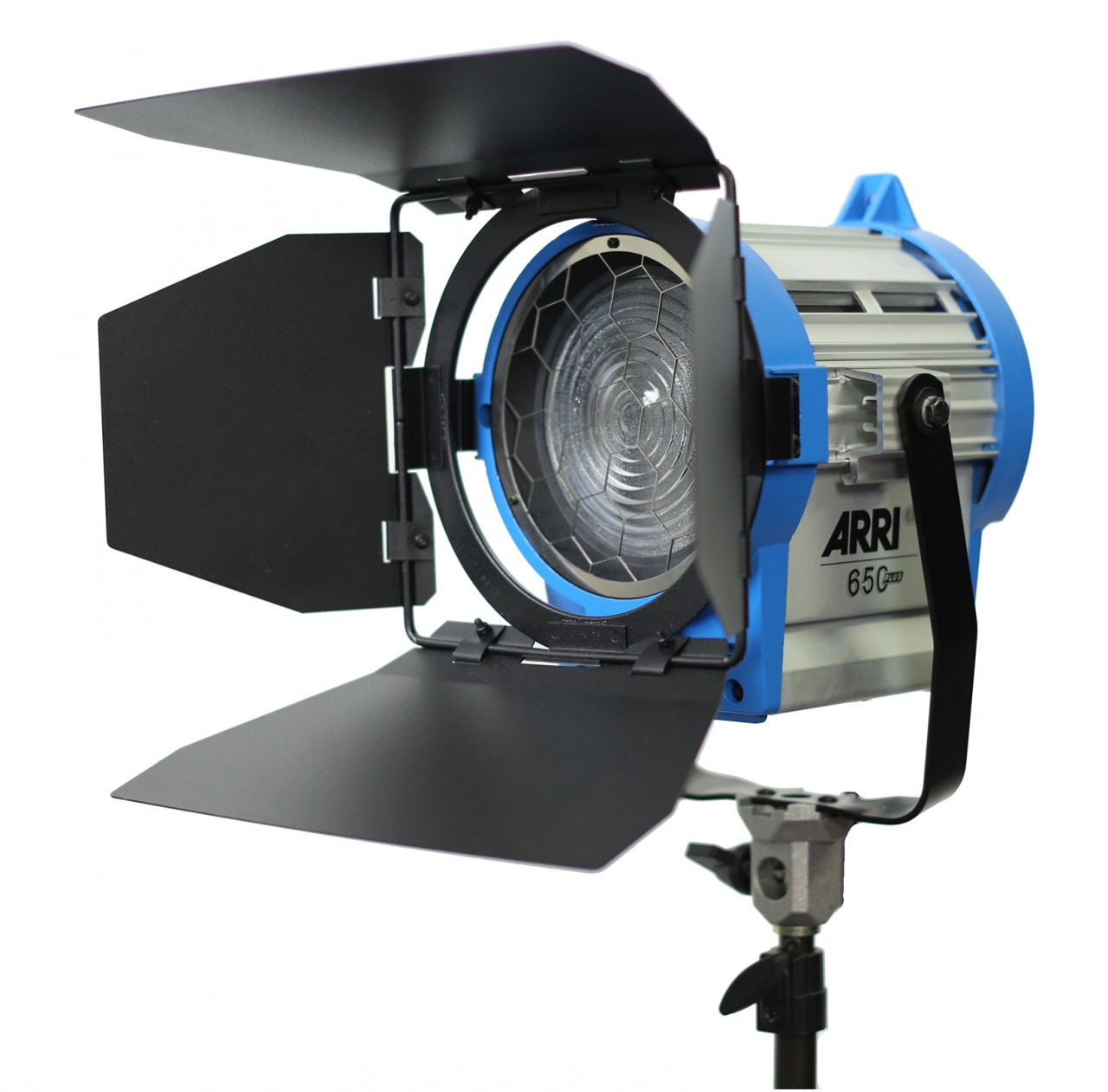

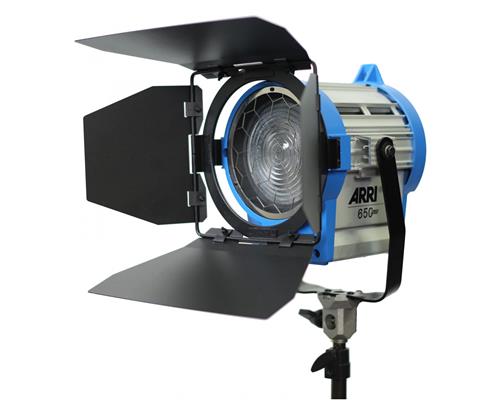

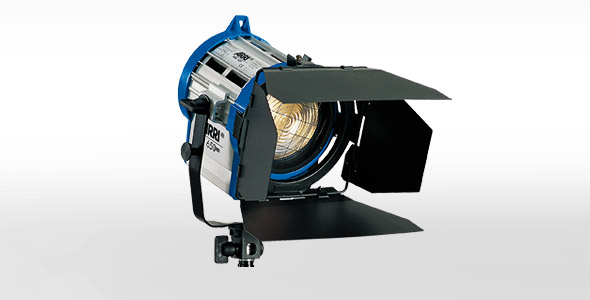

The ARRI Fresnel series is ideal for use where compact, lightweight tungsten Fresnel spotlights are required, especially in small studios where grid height is a problem. Classic ARRI construction, using corrosion-resistant, extruded, die cast aluminium, maximises body strength while maintaining the light weight of a location fixture. Despite the small size of ARRI Fresnels, their short focal length, wide angle lenses produce impressive light output and good light distribution over the full beam area. ARRI Fresnels are available in both manual and pole-operated versions.
| Lamphead Type: |
Fresnel, 650 W |
| Reflector Type: |
Spherical specular high purity aluminum |
| Lamp Type: |
CP89 FRL 650 W / 230 V ; CP89 FRK 650 W / 120 V ; CP82 500W ; CP81 300W |
| Power Consumption: |
650 W, 500 W, 300 W |
| Voltage Range: |
230 V / 120 V |
| Lamp Base: |
GY 9,5 |
| Dimmability: |
Yes, 0 - 100 % via external dimming system |
| Cable Options: |
bare ends, Schuko plug |
| Correlated Color Temperature: |
3200 K |
| Beam Angle: |
12 - 52° |
| Product Weight: |
2,6 kg / 5.7 lbs. |
| Shipping Weight: |
3,5 kg / 7.7 lbs. |
| Product Size (HxWxL): |
276 x 220 x 190 mm / 10.8" x 8.7" x 7.5" |
| Shipping Size (HxWxL): |
295 x 220x 255 mm / 11.6" x 8.7" x 10" |
| Lens Diameter: |
112 mm / 4.41" |
| Accessory Diameter: |
168 mm / 6.61" (Scrim) |
| Barndoor Size: |
168 mm / 6.61" |
| Mounting: |
Socket 16 mm / 5/8" (0.63") |
| Protection Class: |
I/IP 20 |
| Certifications: |
CE, CB, GS, cNRTLus |
